In digital printing, the printhead is the core component, and clogging is a common issue. When blocked, ink flow is disrupted, causing missing lines, color loss, or even printing failure—leading to downtime and higher costs. To prevent this, it’s crucial to understand the causes, including ink quality, maintenance, environment, and storage.
Ink is the most direct factor behind clogging. Printhead nozzles are only a few microns wide—about 1/100 the diameter of a human hair—so any instability in the ink can easily lead to blockages.
Common influencing factors:
●Particle size and dispersion: Low-quality ink may contain oversized or poorly dispersed pigment particles, which can accumulate in the nozzle channel.
●Insufficient chemical stability: Poorly formulated inks may generate sediment or crystallization, which gradually adheres to the printhead.
●Machine compatibility: Different printhead brands and models (such as Epson, Ricoh, Konica) require inks with specific properties (e.g., evaporation rate, viscosity). Using incompatible inks may cause flow imbalance and accelerate clogging. (Inkpedia: Can Different Printheads Share the Same Ink?)
Solutions:
●Use inks designed for your machine’s specifications—avoid unverified or untested sources.
●Check the particle size distribution (D50, D90) to ensure compliance with nozzle standards. A particle size under 200 nm with advanced dispersion is generally recommended.
●For high-stability requirements (e.g., outdoor advertising or industrial printing), select inks tested for weather resistance and durability. For example, LED UV curing inks cure instantly on various substrates with strong adhesion. (Inkpedia: The Secret Behind Fade-Resistant Outdoor Billboard Inks)
.png)

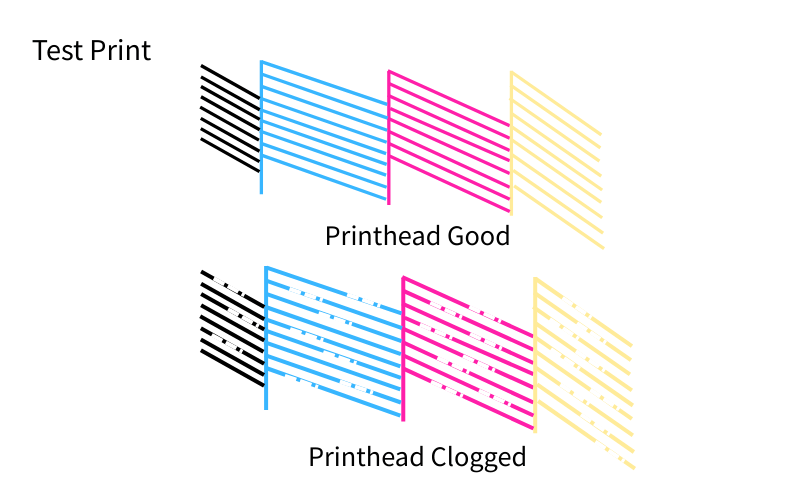

When a printhead becomes clogged, the repair method depends on the machine type and operating environment. In general, small desktop printers and large industrial plotters differ greatly in design and maintenance, so troubleshooting should be adapted accordingly.
Machine Type | Common Issues | Repair Methods | Notes |
| Small Desktop Printers | - Broken nozzle lines - Faded or uneven colors | - Use the printer’s built-in “auto-cleaning” or “deep cleaning” function - Remove the cartridge and soak the printhead in a dedicated cleaning solution | - Avoid alcohol or unknown cleaning liquids, as they may corrode the printhead |
| Large Industrial Plotters | - Partial or large nozzle areas not firing - Severe color loss | - Flush or soak with specialized maintenance fluid - Check if ink tubes or filters are blocked - In severe cases, use ultrasonic cleaning or replace the printhead | - Always use cleaning fluid compatible with the ink - Replace filters regularly to prevent secondary clogging |
Even if ink quality is excellent, poor maintenance can still cause clogging.
Common maintenance mistakes:
●Long idle time: When unused, ink may dry in the nozzles and leave hardened residue.
●Over-reliance on auto-cleaning: Most printers include automatic cleaning, but this only flushes residual ink and cannot remove stubborn clogs completely.
●Neglecting periodic servicing: Ink tubes, dampers, and filters must be replaced regularly to avoid particle buildup that indirectly affects the printhead.
Recommended practices:
●Scheduled cleaning: Depending on usage, perform deep cleaning at least once a week.
●Proper shutdown procedures: For long idle periods, soak the printhead in maintenance fluid to prevent ink from drying.
●Consumable replacement: Follow recommended cycles for damper and filter replacement to ensure a clean ink system.
Pro case: Some customers replace filters and flush ink lines before peak seasons to ensure uninterrupted high-volume printing. This type of preventive maintenance effectively reduces downtime risks.
The printing environment is often overlooked but plays a crucial role, as ink inside the printhead is highly sensitive to temperature and humidity.
Environmental factors:
●Dry environment (RH <40%): Ink solvent evaporates too quickly, causing nozzle-tip drying.
●High humidity (RH >70%): Ink may absorb moisture, altering viscosity and oxidizing metal parts.
●Extreme temperatures: High heat accelerates evaporation; low temperatures increase viscosity and reduce ink flow.
Recommended conditions:
●Temperature: 20–28°C
●Relative humidity: 45–65% RH
●Avoid dust and static, as they stick to nozzle tips and worsen clogging.
Pro tip: Some factories install climate control systems (temperature & humidity regulators) to maintain stable conditions for large-scale production. While this adds upfront cost, it ensures consistent print quality and reduces clogging risks.
Ink is a chemical product but not permanently stable. Over time, pigments and resins may degrade, leading to:
● Viscosity increase → harder ink flow
●Component separation → sediment attaching to nozzles
●Chemical reaction → odor or color shift
Best practices:
●Follow FIFO (First In, First Out) to avoid long-term storage.
●Shake ink gently before use to ensure even pigment dispersion.
●Check manufacturing date and shelf life—most inks should be used within 12–18 months. (Inkpedia: What to Do with Expired Ink? Effective Ink Management Tips to Extend Shelf Life)
Printhead clogging is a common challenge in the printing industry, but most problems can be prevented through proper ink selection, regular maintenance, controlled environment, and correct ink storage. If clogging occurs, using the right repair method—from auto-cleaning to professional servicing—can restore performance. For businesses, prevention should always take priority, with repair as support, to ensure long-term productivity, quality, and lower risks.
